Grid-based design is a standard format of page layout used for documents that display numerous individualized items, such as catalogs.

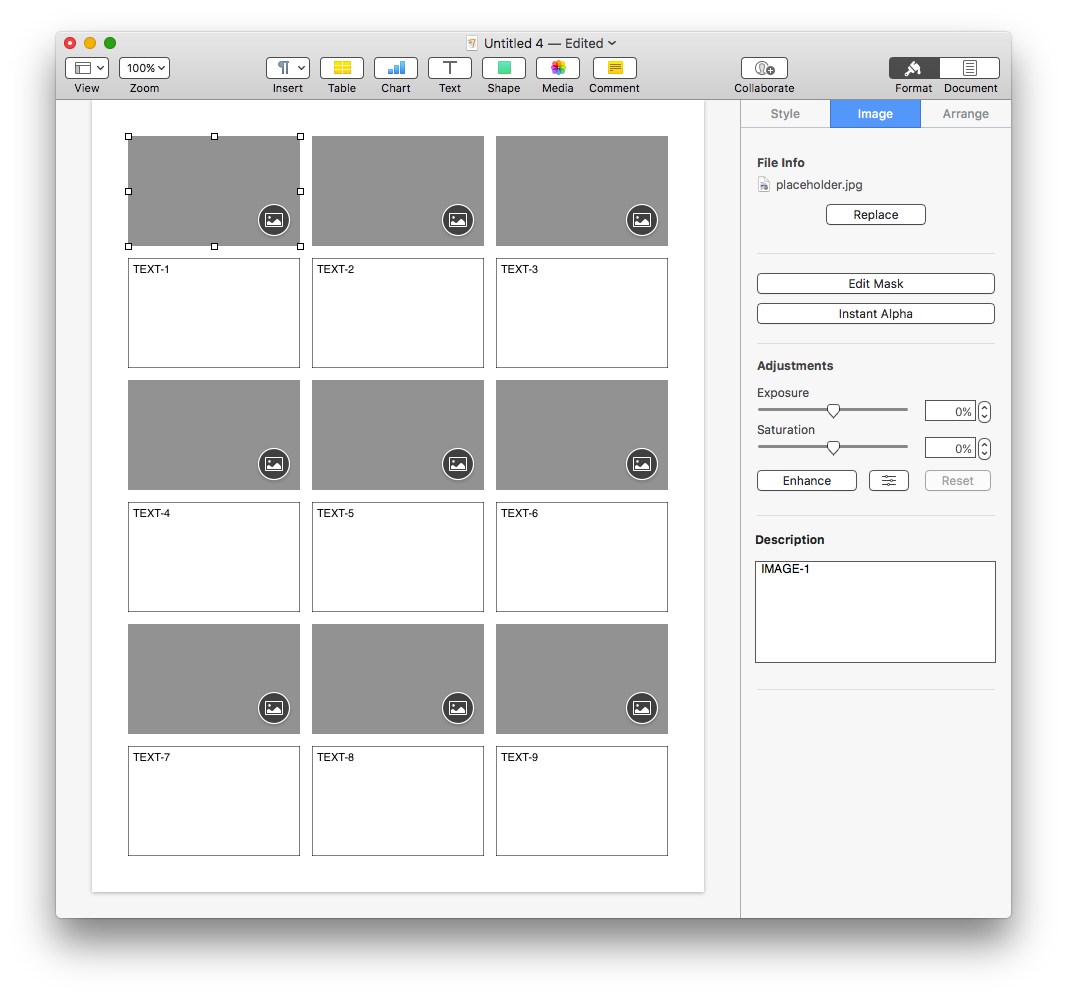

Here’s a script that can quickly create a grid of page items (text boxes and/or image placeholders), and even insert text identifiers into the created text items or into the image descriptions.

DO THIS ►DOWNLOAD a Pages template file of the example shown above. NOTE: when using a document created with the template, add new pages by duplicating the first page.

Here’s the script. Click the button to open it in the Script Editor application where you can run it or save it to the system-wide Script Menu. It is written using AppleScriptObj-C (note the frameworks declared at the top of the script) and actually creates custom-sized placeholder images dynamically!

Create a Grid of Page Items
Open in Script Editor
01		use AppleScript version "2.3.1"
02		use scripting additions
03		use framework "Foundation"
04		use framework "AppKit"
05		use framework "CoreImage"
06
07		property defaulttopMarginHeight : 36
08		property defaultbottomMarginHeight : 36
09		property defaultleftMarginWidth : 36
10		property defaultrightMarginWidth : 36
11		property defaultcolumnGutterWidth : 12
12		property defaultrowGutterHeight : 12
13		property defaultColumnCount : 3
14		property defaultRowCount : 6
15
16		property paperSizeNames : {"US Letter", "US Legal", "A3", "A4", "A5", "JIS B5", "B5", "Envelope #10", "Envelope DL", "Tabloid", "Tabloid Oversize", "ROC 16K", "Envelope Choukei 3", "Super B/A3"}
17		property paperSizeDimensions : {{612, 792}, {612, 1008}, {842, 1191}, {595, 842}, {420, 595}, {516, 729}, {499, 709}, {297, 684}, {312, 624}, {792, 1224}, {864, 1296}, {558, 774}, {340, 666}, {936, 1368}}
18
19		tell application id "com.apple.iWork.Pages"
20		activate
21
22		if not (exists document 1) then error number -128
23
24		set paperSizePrompt to "What is this document’s paper size?"
25		set chosenPageSize to (choose from list paperSizeNames with prompt paperSizePrompt default items (item 1 of paperSizeNames))
26		if chosenPageSize is false then error number -128
27		set chosenPageSize to chosenPageSize as string
28		set thisPageDimensions to item (my indexOfItemInList(chosenPageSize, paperSizeNames)) of paperSizeDimensions
29
30		set orientationPrompt to "Is the page orientation set to landscape or portrait?"
31		display dialog orientationPrompt buttons {"Cancel", "Landscape", "Portrait"} default button 3
32		if the button returned of the result is "Landscape" then
33		set thisPageDimensions to the reverse of thisPageDimensions
34		end if
35
36		copy thisPageDimensions to {documentWidth, documentHeight}
37
38		set objectTypePrompt to "Do you want to create just images, just text items, or both image and text items as pairs?"
39		display dialog objectTypePrompt buttons {"Images", "Text Items", "Both"} default button 3
40		set the objectType to the button returned of the result
41
42		set topMarginPrompt to "Enter the size of the TOP page margin to use (in pixels):"
43		set topMarginHeight to my promptForIntegerValue(topMarginPrompt, 0, documentHeight div 2, defaulttopMarginHeight)
44
45		set bottomMarginPrompt to "Enter the size of the BOTTOM page margin to use (in pixels):"
46		set bottomMarginHeight to my promptForIntegerValue(bottomMarginPrompt, 0, documentHeight div 2, defaultbottomMarginHeight)
47
48		set leftMarginPrompt to "Enter the size of the LEFT page margin to use (in pixels):"
49		set leftMarginWidth to my promptForIntegerValue(leftMarginPrompt, 0, documentHeight div 2, defaultleftMarginWidth)
50
51		set rightMarginPrompt to "Enter the size of RIGHT page margin to use (in pixels):"
52		set rightMarginWidth to my promptForIntegerValue(rightMarginPrompt, 0, documentHeight div 2, defaultrightMarginWidth)
53
54		set columnGutterPrompt to "Enter the space between columns (in pixels):"
55		set columnGutterWidth to my promptForIntegerValue(columnGutterPrompt, 0, 100, defaultcolumnGutterWidth)
56
57		set rowGutterPrompt to "Enter the space between rows (in pixels):"
58		set rowGutterHeight to my promptForIntegerValue(rowGutterPrompt, 0, 100, defaultrowGutterHeight)
59
60		set columnCountPrompt to "Enter the column count:"
61		set columnCount to my promptForIntegerValue(columnCountPrompt, 2, 20, defaultColumnCount)
62
63		if objectType is "Both" then
64		set rowCountForBothPrompt to "Since you’ve chosen to create paired image and text rows, enter the total row count (including both image and text rows):" & return & return & "(This value must be an even number)"
65		repeat
66		set rowCount to my promptForIntegerValue(rowCountForBothPrompt, 2, 20, defaultRowCount)
67		if rowCount mod 2 is 0 then
68		exit repeat
69		else
70		beep
71		end if
72		end repeat
73		else
74		set rowCountPrompt to "Enter the row count:"
75		set rowCount to my promptForIntegerValue(rowCountPrompt, 2, 20, defaultRowCount)
76		end if
77
78		set pageIdentiferPrompt to "Do you want add identifiers to the page items?"
79		display dialog pageIdentiferPrompt buttons {"Cancel", "No", "Yes"} default button 3
80		if (the button returned of the result) is "Yes" then
81		set shouldAddID to true
82		else
83		set shouldAddID to false
84		end if
85
86		set columnGutterCount to columnCount - 1
87		set rowGutterCount to rowCount - 1
88
89		set editableAreaWidth to documentWidth - leftMarginWidth - rightMarginWidth
90		set editableAreaHeight to documentHeight - topMarginHeight - bottomMarginHeight
91
92		set editableColumnAreaWidth to editableAreaWidth - (columnGutterCount * columnGutterWidth)
93		set editableRowAreaHeight to editableAreaHeight - (rowGutterCount * rowGutterHeight)
94
95		set shapeWidth to editableColumnAreaWidth div columnCount
96		set shapeHeight to editableRowAreaHeight div rowCount
97
98		set targetImageFilePath to the POSIX path of (path to pictures folder) & "placeholder.jpg"
99		my createCustomPlaceholderImageFile(shapeWidth, shapeHeight, targetImageFilePath, false)
100		set targetImageFile to targetImageFilePath as POSIX file
101
102		tell document 1
103		tell current page
104		set thisHorizontalOffset to leftMarginWidth
105		set thisVerticalOffset to topMarginHeight
106		set itemCounter to 0
107		set textItemCount to 0
108		set imageItemCount to 0
109		repeat with i from 1 to rowCount
110		repeat with q from 1 to columnCount
111		if the objectType is "Images" then
112		set itemCounter to itemCounter + 1
113		set placeholderText to "PLACEHOLDER-" & (itemCounter as text)
114		set thisImage to make new image with properties {file:targetImageFile, width:shapeWidth, height:shapeHeight, position:{thisHorizontalOffset, thisVerticalOffset}, description:placeholderText}
115		delay 0.5
116		tell application "System Events" to keystroke "i" using {control down, command down, option down}
117		delay 0.5
118		else if the objectType is "Text Items" then
119		if shouldAddID is true then
120		set itemCounter to itemCounter + 1
121		set placeholderText to "PLACEHOLDER-" & (itemCounter as text)
122		else
123		set placeholderText to ""
124		end if
125		make new text item with properties {width:shapeWidth, height:shapeHeight, position:{thisHorizontalOffset, thisVerticalOffset}, object text:placeholderText}
126		else if the objectType is "Both" then
127		if i mod 2 is 0 then -- even row is text items
128		if shouldAddID is true then
129		set textItemCount to textItemCount + 1
130		set placeholderText to "TEXT-" & textItemCount as text
131		else
132		set placeholderText to ""
133		end if
134		make new text item with properties {width:shapeWidth, height:shapeHeight, position:{thisHorizontalOffset, thisVerticalOffset}, object text:placeholderText}
135		else -- odd row is images
136		if shouldAddID is true then
137		set imageItemCount to imageItemCount + 1
138		set placeholderText to "IMAGE-" & imageItemCount as text
139		else
140		set placeholderText to ""
141		end if
142		set thisImage to make new image with properties {file:targetImageFile, width:shapeWidth, height:shapeHeight, position:{thisHorizontalOffset, thisVerticalOffset}, description:placeholderText}
143		if shouldAddID is true then set description of thisImage to placeholderText
144		delay 0.5
145		tell application "System Events" to keystroke "i" using {control down, command down, option down}
146		delay 0.5
147		end if
148		end if
149		set thisHorizontalOffset to thisHorizontalOffset + columnGutterWidth + shapeWidth
150		end repeat
151		set thisHorizontalOffset to leftMarginWidth
152		set thisVerticalOffset to thisVerticalOffset + rowGutterHeight + shapeHeight
153		end repeat
154		end tell
155		end tell
156		end tell
157		tell application id "com.apple.Finder" to move targetImageFile to the trash
158
159		on promptForIntegerValue(thisPrompt, minimumValue, maximumValue, defaultValue)
160		tell application id "com.apple.iWork.Pages"
161		repeat
162		display dialog thisPrompt default answer (defaultValue as string)
163		try
164		set thisValue to (the text returned of the result) as integer
165		if thisValue is greater than or equal to minimumValue and thisValue is less than or equal to maximumValue then
166		return thisValue
167		end if
168		on error
169		beep
170		end try
171		end repeat
172		end tell
173		end promptForIntegerValue
174
175		on indexOfItemInList(aValue, theList)
176		set theArray to current application's NSArray's arrayWithArray:theList
177		set theIndex to theArray's indexOfObject:aValue
178		return (theIndex + 1)
179		end indexOfItemInList
180
181		on createCustomPlaceholderImageFile(aWidth, aHeight, targetImageFilePath, shouldReveal)
182		set aColor to current application's NSColor's grayColor
183		set aSize to {width:aWidth, height:aHeight}
184		set aRect to current application's NSMakeRect(0, 0, aWidth, aHeight)
185		set aImage to current application's NSImage's alloc()'s initWithSize:aSize
186		aImage's lockFocus()
187		aColor's drawSwatchInRect:aRect
188		aImage's unlockFocus()
189		set aResult to writeNSImageObjectToFileAsJPEG(aImage, targetImageFilePath, shouldReveal)
190		return aResult
191		end createCustomPlaceholderImageFile
192
193		on writeNSImageObjectToFileAsJPEG(thisImageObject, targetImageFilePath, shouldRevealInFinder)
194		-- create JPEG data for the image object
195		set tiffData to thisImageObject's TIFFRepresentation()
196		set imageRep to current application's NSBitmapimageRep's imageRepWithData:tiffData
197		set theProps to current application's NSDictionary's dictionaryWithObject:1.0 forKey:(current application's NSImageCompressionFactor)
198		set imageData to (imageRep's representationUsingType:(current application's NSJPEGFileType) |properties|:theProps)
199
200		-- write the JPEG data to file
201		set theResult to (imageData's writeToFile:targetImageFilePath atomically:true |error|:(missing value)) as boolean
202		if theResult is true then
203		if shouldRevealInFinder is true then
204		set theseURLs to {}
205		set the end of theseURLs to (current application's NSURL's fileURLWithPath:targetImageFilePath)
206		-- reveal items in file viewer
207		tell current application's NSWorkspace to set theWorkspace to sharedWorkspace()
208		tell theWorkspace to activateFileViewerSelectingURLs:theseURLs
209		end if
210		return true
211		else
212		error "There was a problem writing the image object to file."
213		end if
214		end writeNSImageObjectToFileAsJPEG

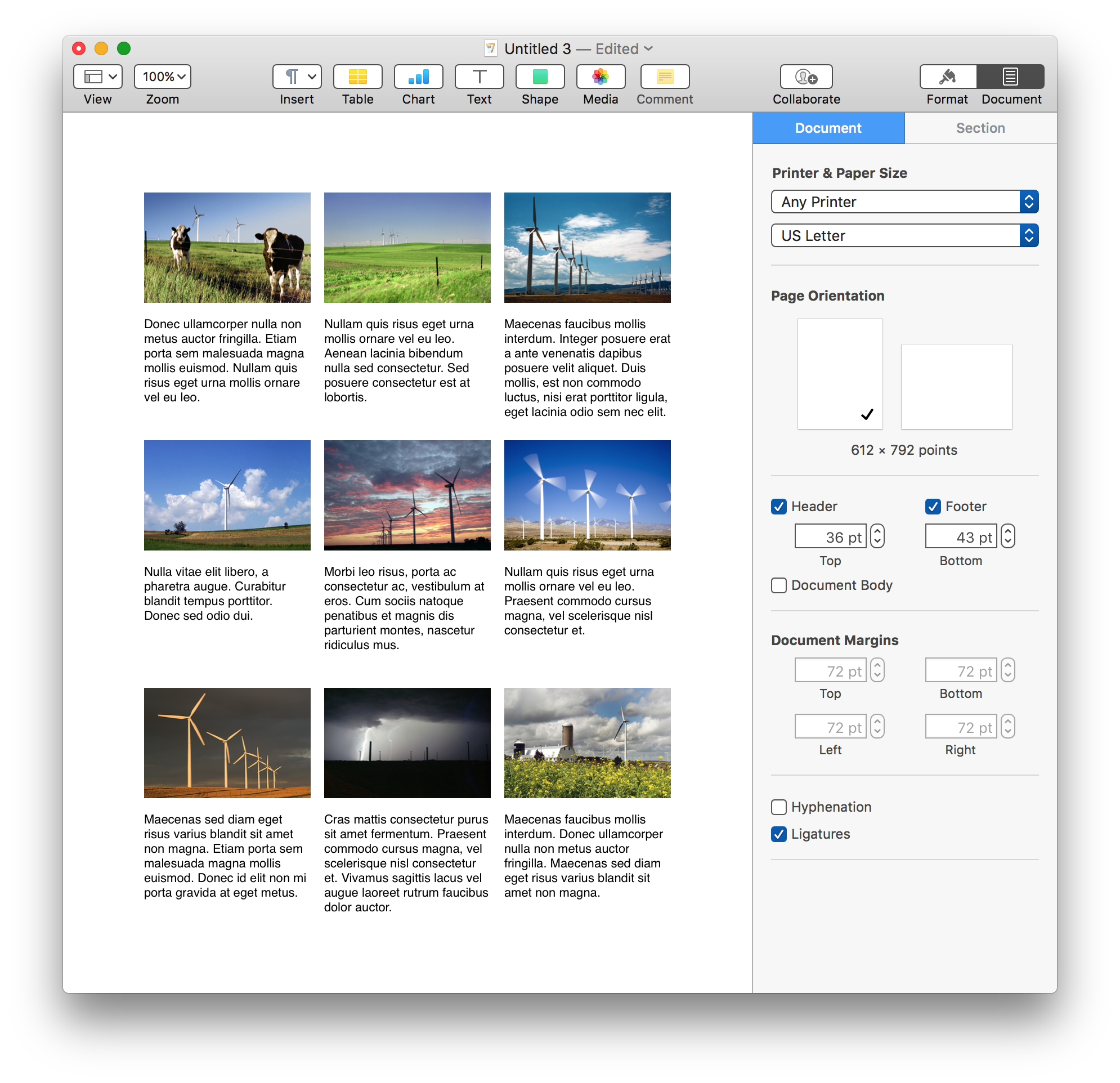

(⬇ see below ) Vertical grid of image and text pairings

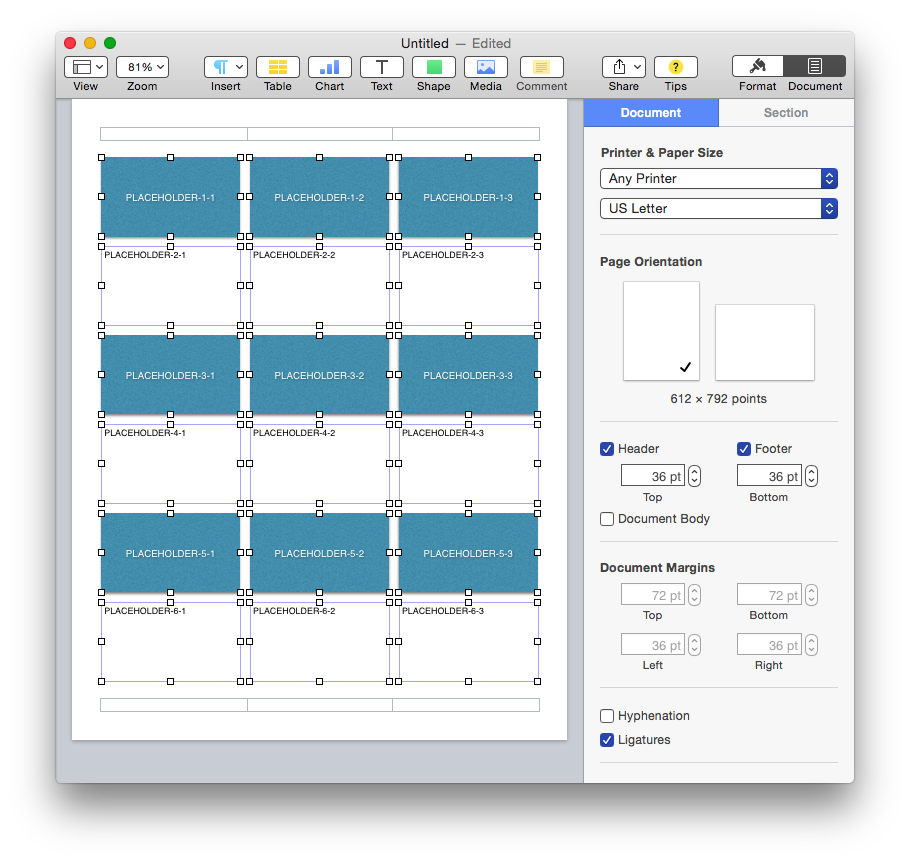

NOTE:  (⬆ see above )  Be sure to disable word-processing mode by deselecting the “Document Body” option checkbox in the Document tab on the right side of the window.

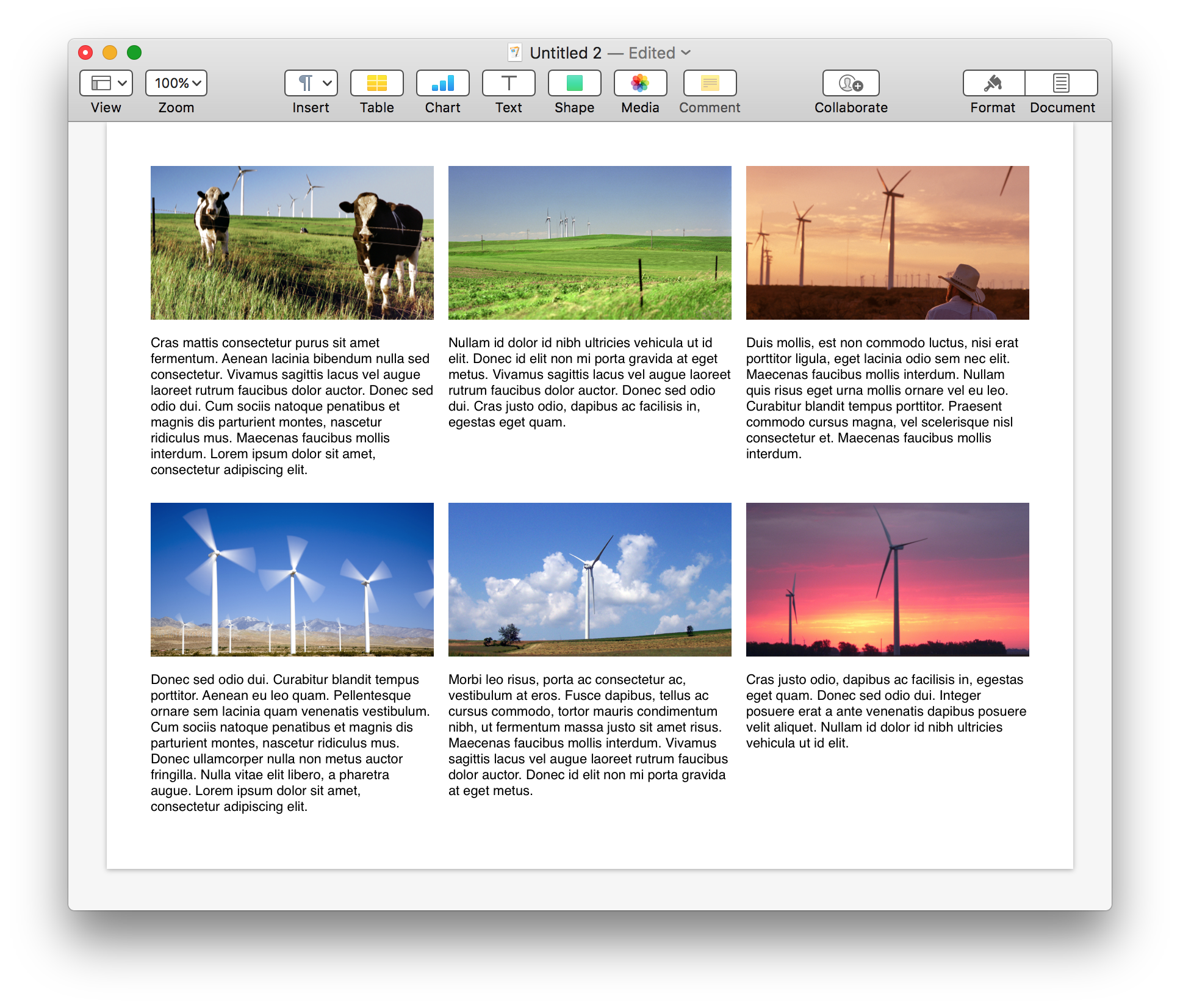

(⬇ see below ) Horizontal grid of image and text pairings
