AppleScript and Keynote: Vertical Bar Charts

Vertical Bar Charts

Vertical bar charts is a staple of presentations. Here is an example script that demonstrates how to automate their creation from data sets:

Vertical Bar Charts

tell application "Keynote"

if playing is true then stop the front document

activate

set thisDocument to make new document with properties ¬

{height:764, width:1024, document theme:theme "Black"}

tell thisDocument

set rowNames to {"ROW 1", "ROW 2", "ROW 3"}

set columnNames to {"COL A", "COL B", "COL C", "COL D"}

set rowCount to count of rowNames

set columnCount to count of columnNames

set chartData to my generateRandomData(rowCount, columnCount)

tell slide 1

set the base slide to master slide "Title - Top" of thisDocument

set the object text of the default title item to "Grouped by Column"

add chart row names rowNames column names columnNames ¬

data chartData type vertical_bar_2d group by chart column

end tell

set thisSlide to ¬

make new slide with properties {base slide:master slide "Title - Top"}

tell thisSlide

set the object text of the default title item to "Grouped by Row"

add chart row names rowNames column names columnNames ¬

data chartData type vertical_bar_2d group by chart row

end tell

start thisDocument from first slide of thisDocument

end tell

on generateRandomData(rowCount, columnCount)

set thisData to {}

repeat rowCount times

set thisDataItem to {}

repeat columnCount times

set thisValue to random number from 0 to 100

set the end of thisDataItem to thisValue

end repeat

set the end of thisData to thisDataItem

end repeat

return thisData

end generateRandomData

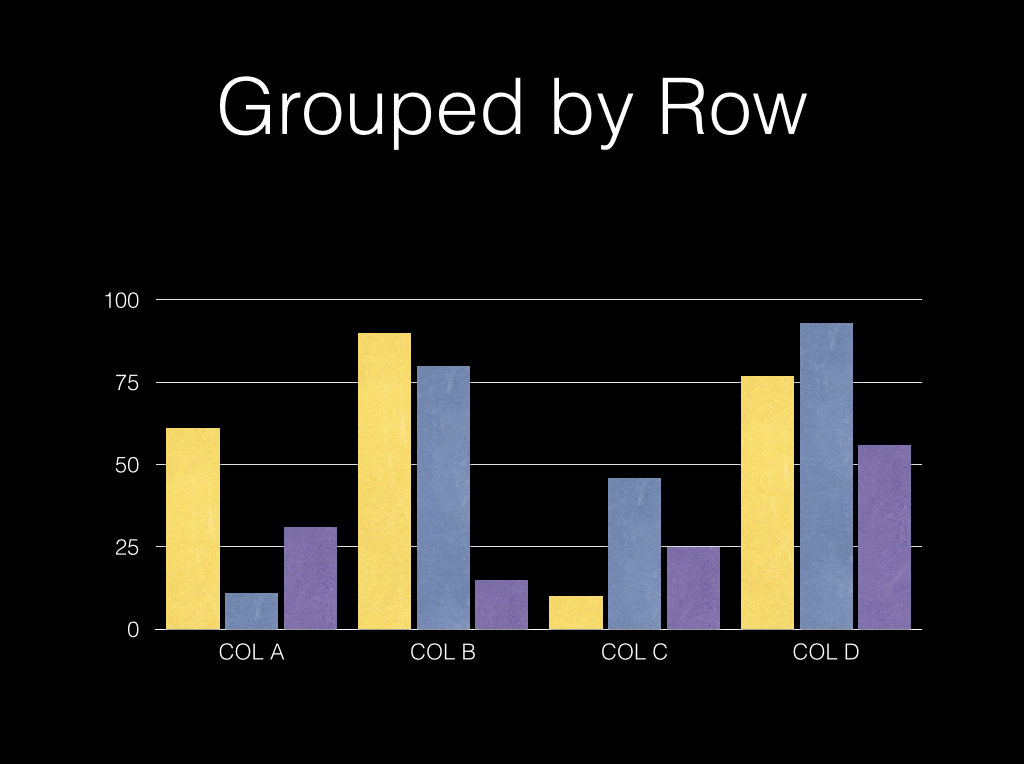

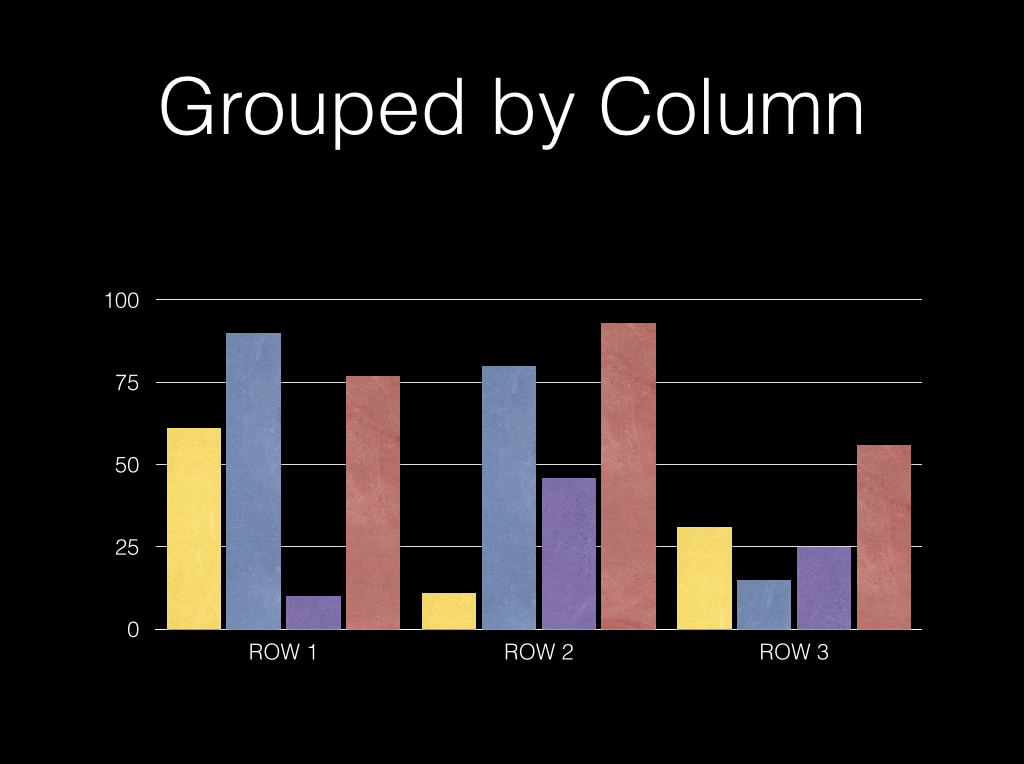

(⬇ see below ) The slides created by the script:
