AppleScript and Numbers: Adding Columns

Adding Columns

Adding columns to a table is accomplished using the add column after and add column before commands, which take as a direct parameter, a range of the table.

add column after v : Add a column to the table after a specified range of cells.

add column after range

add column before v : Add a column to the table before a specified range of cells.

add column before range

The script example below, adds a summation column to the end of the currently selected table:

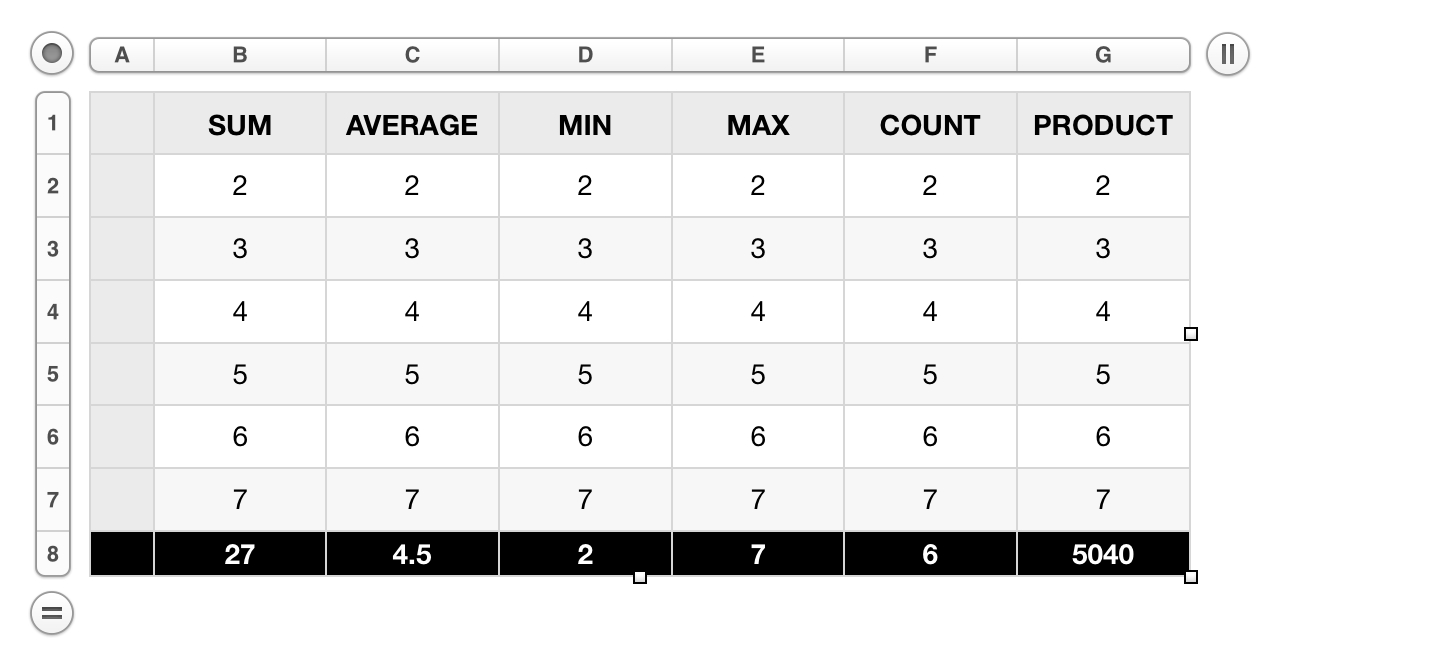

(⬆ see above ) Table before adding SUM column.

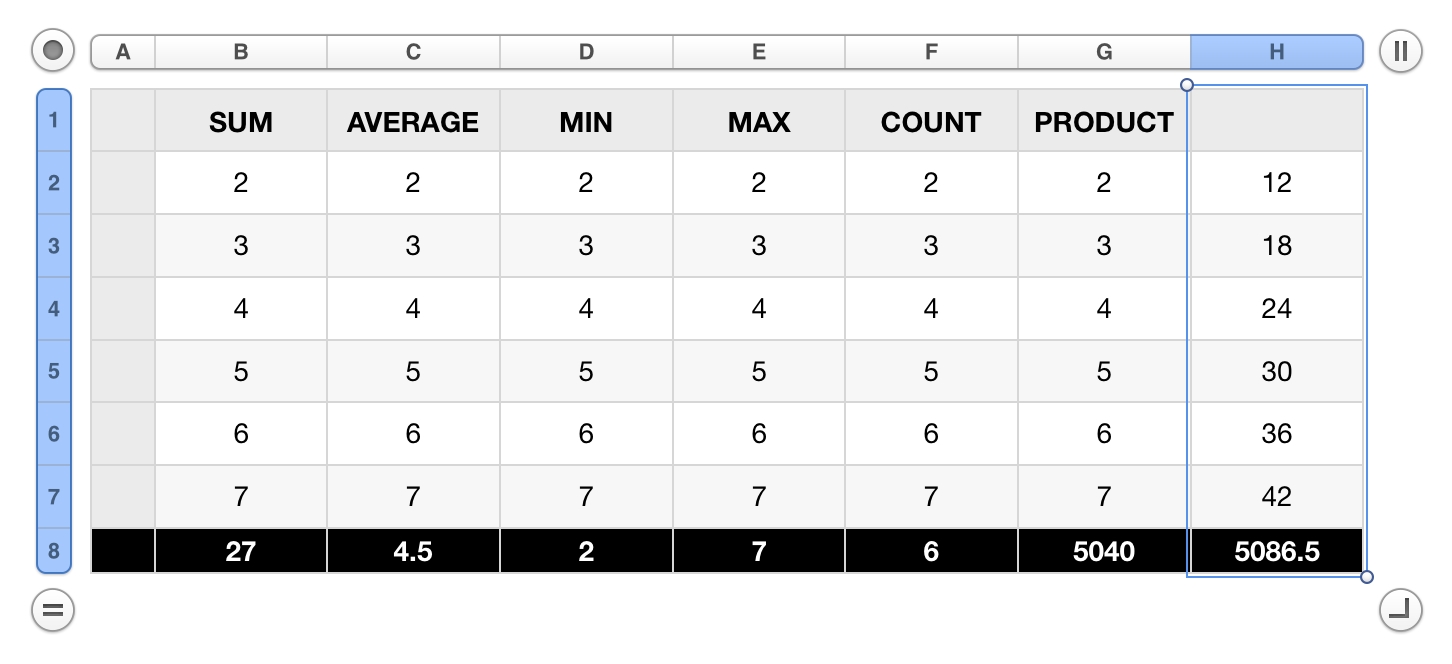

(⬇ see below ) Table after adding SUM column to end.

Here’s the script:

Add Summation Column to Selected Table

tell application "Numbers"

activate

try

if not (exists document 1) then error number 1000

tell document 1

try

tell active sheet

set the selectedTable to ¬

(the first table whose class of selection range is range)

end tell

on error

error number 1001

end try

tell selectedTable

-- currently, use of headers and footers cannot be determined by a script.

-- make the following assumptions:

set usesHeaders to true -- assume 1 row and 1 column

set usesFooters to false -- assume 1 row

-- add a new column

add column after last column

set the summationColumn to the last column

-- set the formula of each cell of the summation column

tell summationColumn

if usesHeaders is true then

set startIndex to 2

else

set startIndex to 1

end if

repeat with i from startIndex to the count of cells

-- get the row of the cell

set thisRow to the row of cell i

-- determine range coordinates

set the rangeStart to the name of cell startIndex of thisRow

set the rangeEnd to the name of cell -2 of thisRow

-- create formula using SUM function

set the summationFormula to ¬

("=SUM(" & rangeStart & ":" & rangeEnd & ")") as string

-- set the formula to the cell

set the value of cell i to summationFormula

end repeat

end tell

on error errorMessage number errorNumber

if errorNumber is 1000 then

set alertString to "MISSING RESOURCE"

set errorMessage to ¬

"Please create or open a document before running this script."

else if errorNumber is 1001 then

set alertString to "SELECTION ERROR"

set errorMessage to ¬

"Please select a table before running this script."

else

set alertString to "EXECUTION ERROR"

end if

if errorNumber is not -128 then

display alert alertString message errorMessage buttons {"Cancel"}

end if

error number -128

end try

end tell

TOP | CONTINUE
