AppleScript and Numbers: Merging a Range

Merging a Range

The range class can be the target of the merge and unmerge commands.

merge v : Merge a specified range of cells.

merge range

unmerge v : Unmerge all merged the cells in a specified range.

unmerge range

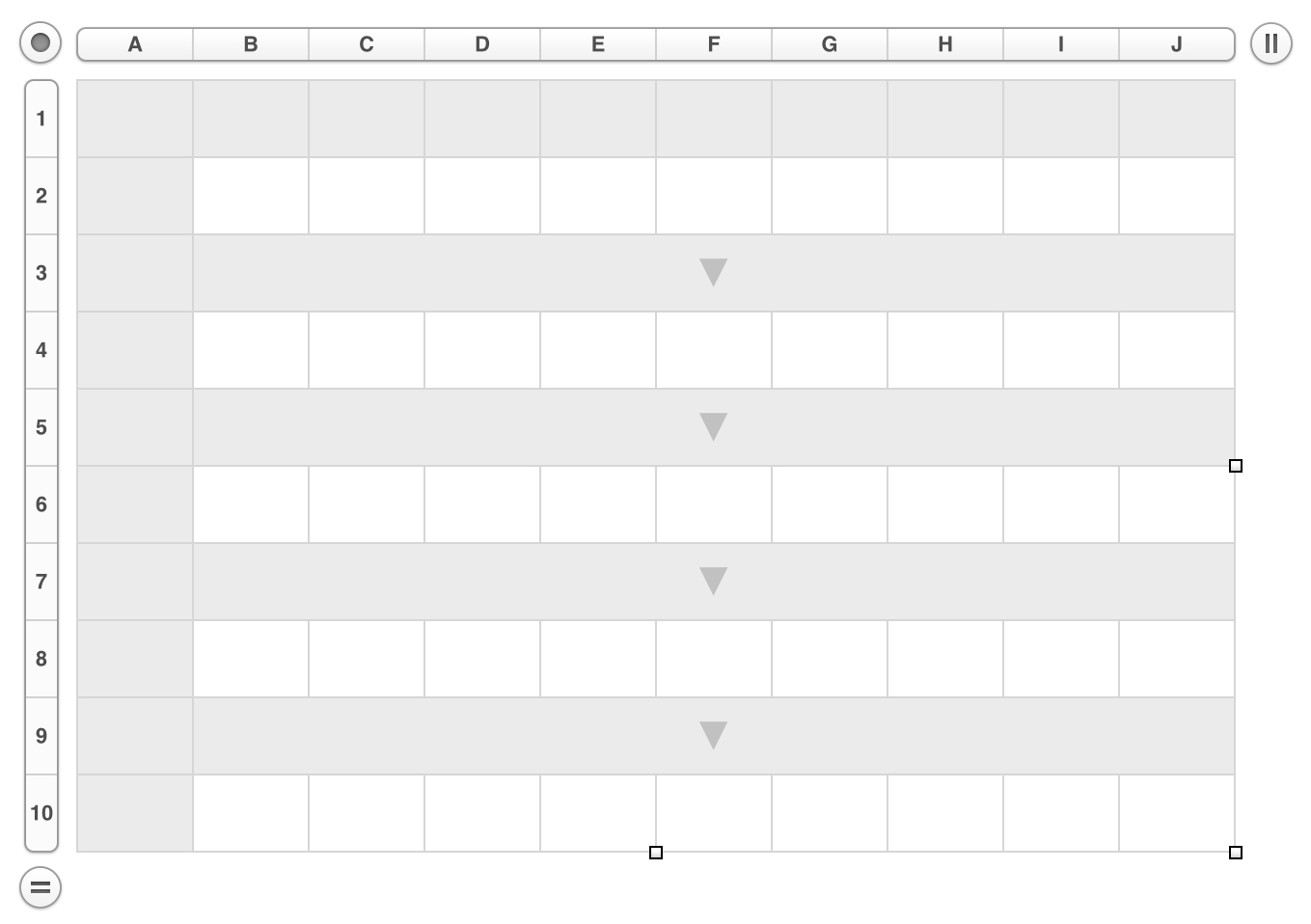

The merging of cells is often done for organizational or esthetic reasons, as a way to separate or highlight data in a table. In the example table shown below, alternating rows have been merged to provide a buffer between the rows that will contain the data.

NOTE: You can merge cells wholly within a table header region or the body. You cannot merge cells that span those regions. e.g. If you set the number of header columns to 5 then merge range "A1:E1" will work but merge range "A1:F1" will not, because F1 is in the body and the others are in the header.

The following example script will create such a table on the current spread of the frontmost document:

Create Table with Alternating Merged Rows

property rowCount : 10

property columnCount : 10

property useRowHeaders : true

property useColumnHeaders : true

tell application "Numbers"

activate

if not (exists document 1) then make new document

tell document 1

tell active sheet

set thisTable to ¬

make new table with properties ¬

{row count:rowCount, column count:columnCount}

tell thisTable

set height of every row to 40

set width of every column to 60

if useRowHeaders is true then

set startRowCellIndex to 2

else

set startRowCellIndex to 1

end if

if useColumnHeaders is true then

set startColumnCellIndex to 3

else

set startColumnCellIndex to 2

end if

repeat with i from startColumnCellIndex to rowCount by 2

-- define the cell range to merge

set rangeStart to name of cell startRowCellIndex of row i

set rangeEnd to name of cell -1 of row i

set the rowRange to rangeStart & ":" & rangeEnd

-- merge the specified range

merge range rowRange

tell cell 2 of row i -- format the merged area

set background color to {59121, 59119, 59120}

set text color to {46137, 46137, 46137}

set alignment to center

set vertical alignment to center

set font size to 18.0

set value to "▼"

end tell

end repeat

set the selection range to cell range

end tell

TOP | CONTINUE
