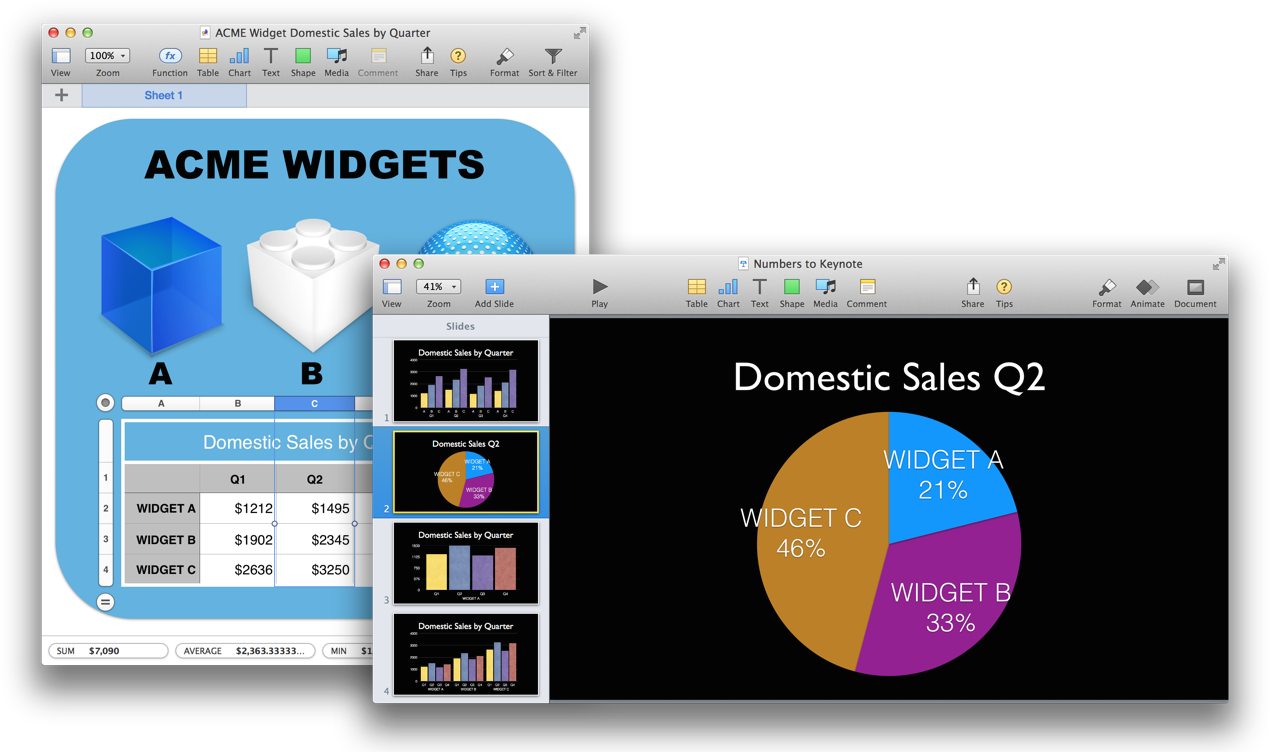

Here’s an example AppleScript script that transforms the data from a single selected row or column in a Numbers table to a pie chart on a new slide in Keynote.

DO THIS ► DOWNLOAD the simple example Numbers document.

Simply select a single row or column in a Numbers table and run the script. The row data will be extracted and used to create a pie chart on a new slide in the frontmost Keynote document. In addition, the name of the selected table can optionally be used as the title for the created slide.

New Pie Chart in Keynote using Data From Selected Column | Row
Open in AppleScript Editor
01		property useTableNameForslideTitle : false
02
03		tell application "Numbers"
04		activate
05		try
06		-- check for document
07		if not (exists document 1) then error number 1000
08		tell document 1
09		try -- check for selected table
10		tell active sheet
11		set the selectedTable to ¬
12		(the first table whose class of selection range is range)
13		end tell
14		on error
15		error number 1001
16		end try
17		tell selectedTable
18		set thisTableName to its name
19		-- get the count fo the various headers and footers
20		set the headercolumnCount to header column count
21		set the headerrowCount to header row count
22		set the footerrowCount to footer row count
23		-- store references to the intersecting columns and rows
24		set theseRows to the rows of the selection range
25		set theseColumns to the columns of the selection range
26		-- get the row and column counts
27		set rowCount to (count of theseRows)
28		set columnCount to (count of theseColumns)
29		-- check for errors
30		if (rowCount is not 1) and (columnCount is not 1) then
31		error number 1002
32		else if (rowCount is 1) and (columnCount is 1) then
33		error number 1002
34		end if
35		if headerrowCount is greater than 1 then
36		error number 1003
37		end if
38		if headercolumnCount is greater than 1 then
39		error number 1004
40		end if
41		-- get the column names
42		set columnNames to {}
43		if headercolumnCount is not 0 then
44		repeat with i from 1 to the count of theseColumns
45		set thisValue to (the value of the first cell of (item i of theseColumns))
46		if thisValue is not missing value then
47		set the end of columnNames to thisValue
48		end if
49		end repeat
50		end if
51		-- get the row names
52		set rowNames to {}
53		if headerrowCount is not 0 then
54		repeat with i from 1 to the count of theseRows
55		set thisValue to (the value of the first cell of (item i of theseRows))
56		if thisValue is not missing value then
57		set the end of rowNames to thisValue
58		end if
59		end repeat
60		end if
61		end tell
62		-- add the chart to a new slide inserted after the current slide
63		if rowCount is greater than columnCount then
64		-- a column is selected
65		tell selectedTable
66		set thisColumn to item 1 of theseColumns
67		set footerOffset to ((1 + footerrowCount) * -1)
68		set dataSet to ¬
69		(the value of cells (headercolumnCount + 1) thru footerOffset of thisColumn)
70		end tell
71		tell application "Keynote"
72		activate
73		if not (exists document 1) then make new document
74		tell the front document
75		set thisSlide to ¬
76		make new slide at after (get current slide) with properties ¬
77		{base slide:master slide "Title - Top"}
78		tell thisSlide
79		if useTableNameForslideTitle is true then
80		set slideTitle to thisTableName
81		else
82		set slideTitle to (item 1 of the columnNames)
83		end if
84		set the object text of the default title item to slideTitle
85		add chart row names columnNames column names rowNames ¬
86		data {dataSet} type pie_2d group by chart column
87		end tell
88		end tell
89		end tell
90		else
91		-- a row is selected
92		tell selectedTable
93		set thisRow to item 1 of theseRows
94		set footerOffset to ((1 + footerrowCount) * -1)
95		set dataSet to ¬
96		(the value of cells (headerrowCount + 1) thru footerOffset of thisRow)
97		end tell
98		tell application "Keynote"
99		activate
100		if not (exists document 1) then make new document
101		tell the front document
102		set thisSlide to ¬
103		make new slide at after (get current slide) with properties ¬
104		{base slide:master slide "Title - Top"}
105		tell thisSlide
106		if useTableNameForslideTitle is true then
107		set slideTitle to thisTableName
108		else
109		set slideTitle to (item 1 of the rowNames)
110		end if
111		set the object text of the default title item to slideTitle
112		add chart row names rowNames column names columnNames ¬
113		data {dataSet} type pie_2d group by chart column
114		end tell
115		end tell
116		end tell
117		end if
118		end tell
119		on error errorMessage number errorNumber
120		if errorNumber is 1000 then
121		set alertString to "MISSING RESOURCE"
122		set errorMessage to ¬
123		"Please create or open a document before running this script."
124		else if errorNumber is 1001 then
125		set alertString to "SELECTION ERROR"
126		set errorMessage to "Please select a table before running this script."
127		else if errorNumber is 1002 then
128		set alertString to "SELECTION ERROR"
129		set errorMessage to "Please select a single column or row."
130		else if errorNumber is 1003 then
131		set alertString to "TOO MANY ROW HEADERS"
132		set errorMessage to ¬
133		"This script is designed to work with no more than a single row header."
134		else if errorNumber is 1004 then
135		set alertString to "TOO MANY COLUMN HEADERS"
136		set errorMessage to ¬
137		"This script is designed to work with no more than a single column header."
138		else
139		set alertString to "EXECUTION ERROR"
140		end if
141		if errorNumber is not -128 then
142		display alert alertString message errorMessage buttons {"Cancel"}
143		end if
144		error number -128
145		end try
146		end tell

Touch Bar Action for macOS Mojave

In macOS Mojave v10.14 Automator workflows can be saved as “Quick Actions” for the MacBook Touch Bar. The previous script can be adapted for use as a Touch Bar item.

DO THIS ► DOWNLOAD the Automator service workflow for macOS Mojave.

The following video shows the “Pie in Keynote” Touch Bar Quick Action in use:
