AppleScript and Numbers: Adding Rows

Adding Rows

Adding rows to a table is accomplished using the add row above and add row below commands, which take as a direct parameter, a range of the table.

add row above v : Add a row to the table above a specified range of cells.

add column after range

add row below v : Add a row to the table below a specified range of cells.

add column before range

The script example below, adds a row, ending with a table summation cell, to the end of the currently selected table:

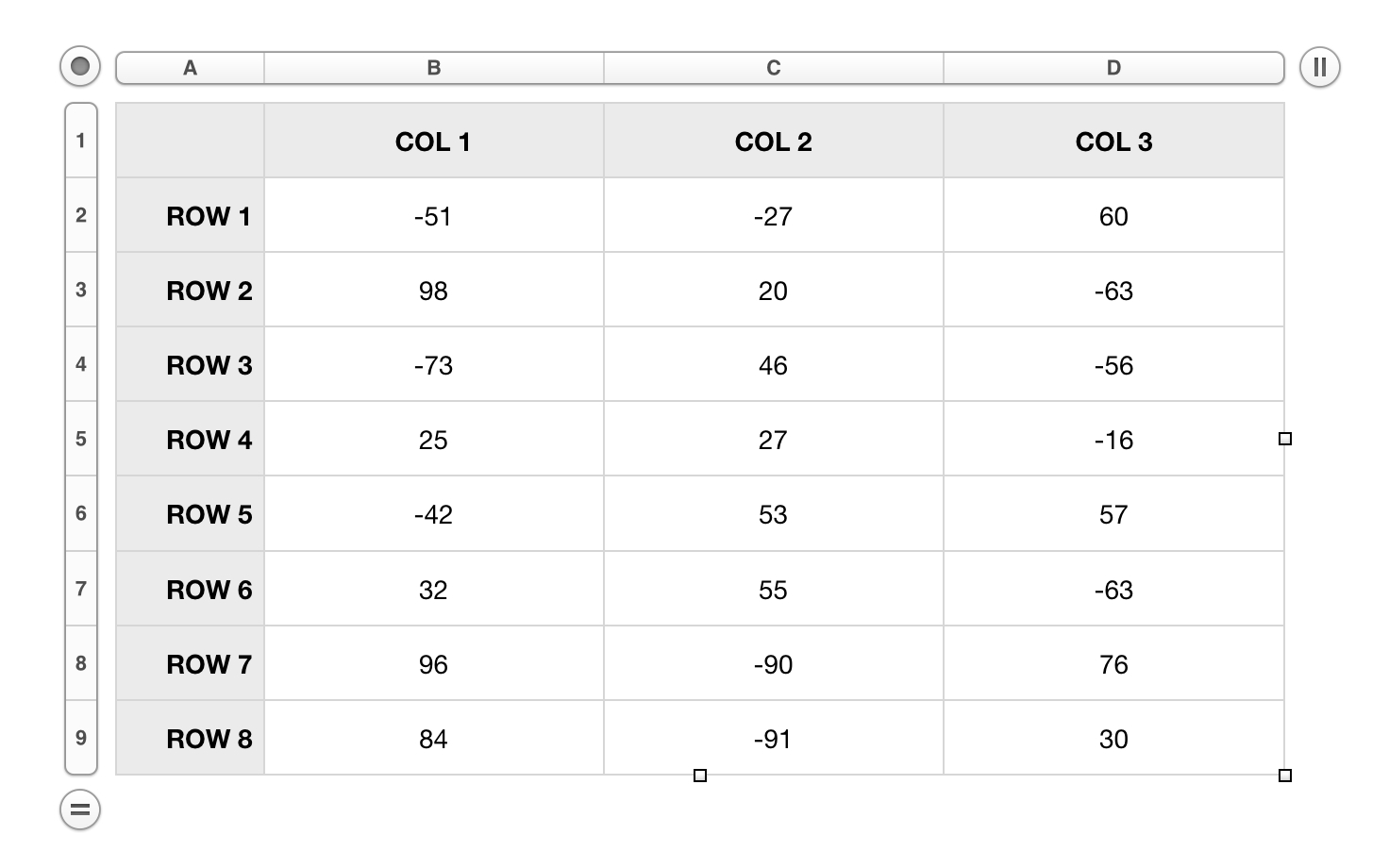

(⬆ see above ) A table to which will be added a row, using the following script:

Add Table Summation Cell

-- This script adds a table summation cell to the bottom right of the selected table

-- NOTE: This script assumes the use of one row header and one column header

tell application "Numbers"

activate

try

if not (exists document 1) then error number 1000

tell document 1

try

tell active sheet

set the selectedTable to ¬

(the first table whose class of selection range is range)

end tell

on error

error number 1001

end try

tell selectedTable

-- store the address of the current non-header cell area

set tableRangeAddress to (name of cell 2 of row 2) & ":" & (name of last cell)

-- add a row to the end of the table

add row below last row

tell last row

-- set style properties of new row

set background color to {0, 0, 0}

set text color to {65535, 65535, 65535}

-- derive the range address of the cells to merge

set the mergeRangeAddress to (name of second cell) & ":" & (name of cell -2)

end tell

-- merge all cells of the new row except the frist and last ones

merge range mergeRangeAddress

tell last row

-- set the contents and style of merged cells

set alignment of second cell to right

set value of second cell to "TOTAL"

end tell

-- set formula of last cell to be SUM of table

set the value of the last cell to ("=SUM(" & tableRangeAddress & ")")

end tell

on error errorMessage number errorNumber

if errorNumber is 1000 then

set alertString to "MISSING RESOURCE"

set errorMessage to "Please create or open a document before running this script."

else if errorNumber is 1001 then

set alertString to "SELECTION ERROR"

set errorMessage to "Please select a table before running this script."

else

set alertString to "EXECUTION ERROR"

end if

display alert alertString message errorMessage buttons {"Cancel"}

error number -128

end try

end tell

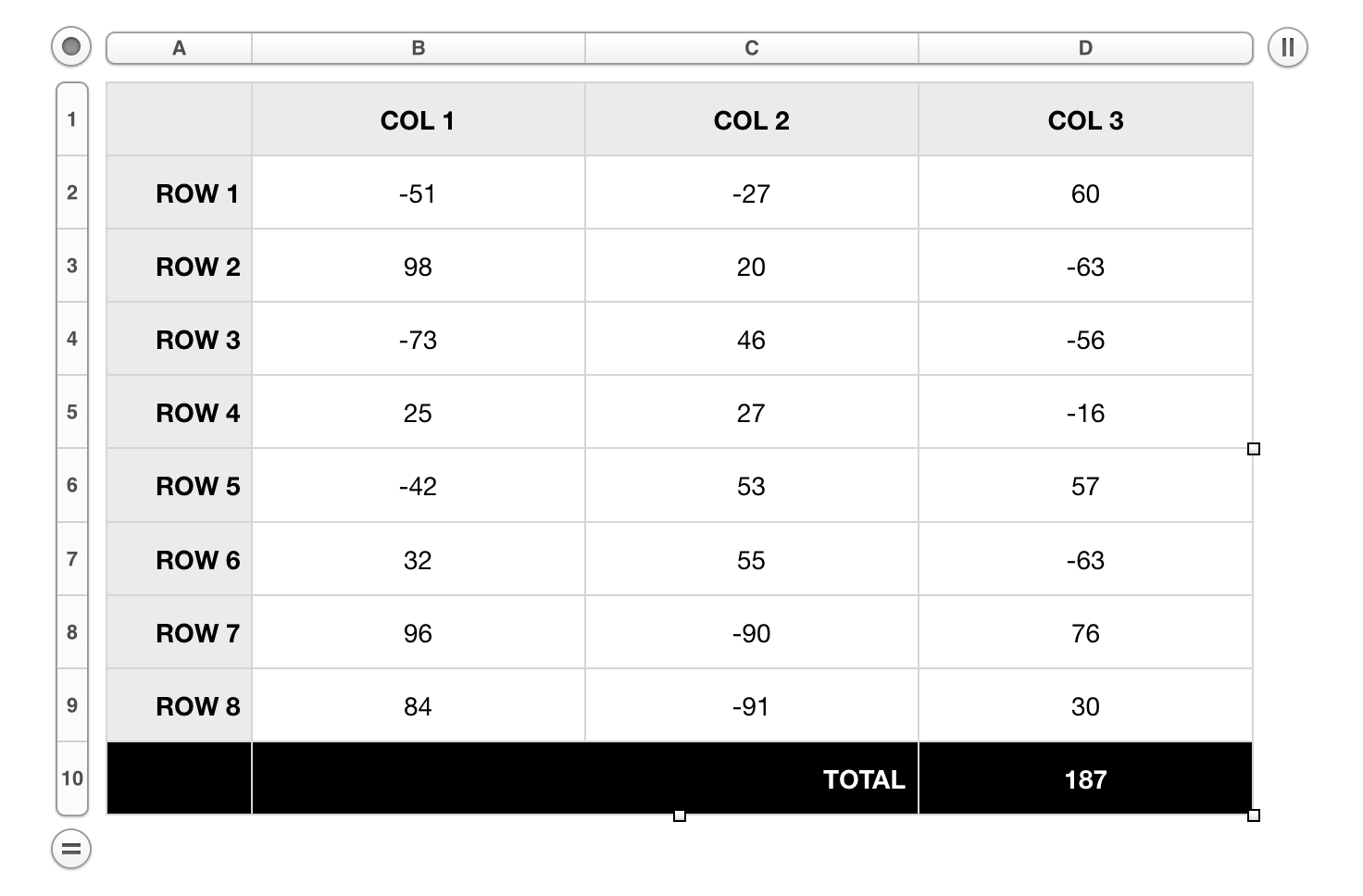

(⬇ see below ) The table with an added row, that contains a cell displaying the summation of the table cells.

TOP | CONTINUE
